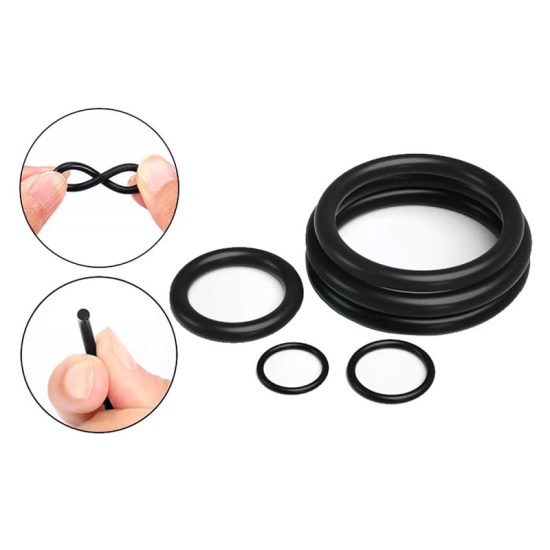

Savvy has manufactured distributor o-rings in China for many years. If you want to replace them, we are of help.
- Payment Way: T/T, Western Union, Paypal
- Incoterm: EXW, FOB, CIF
- Shipping Way: By Air or Sea
- Manufacturer Place: Ningbo, China
- Delivery Time: 7 - 30 days
- Factory Status: Stocked for Sale
Share to SNS:
What is Distributor O-Ring?
Distributor o-ring is an annular seal installed in distribution boards (distributors), usually made of elastic materials. Its core function is to provide dynamic or static sealing for high-voltage power distribution systems, ensuring that the internal environment is protected from external contamination while maintaining electrical insulation performance. Its primary role is to prevent engine oil from leaking into the distributor housing, block moisture and debris from entering the ignition system, and maintain proper vacuum pressure for timing accuracy.
Distributors remain vital components in traditional ignition systems, and distributor o-rings play a surprisingly crucial role.
Distributor O-Ring Replacement
Tools & Materials Needed:

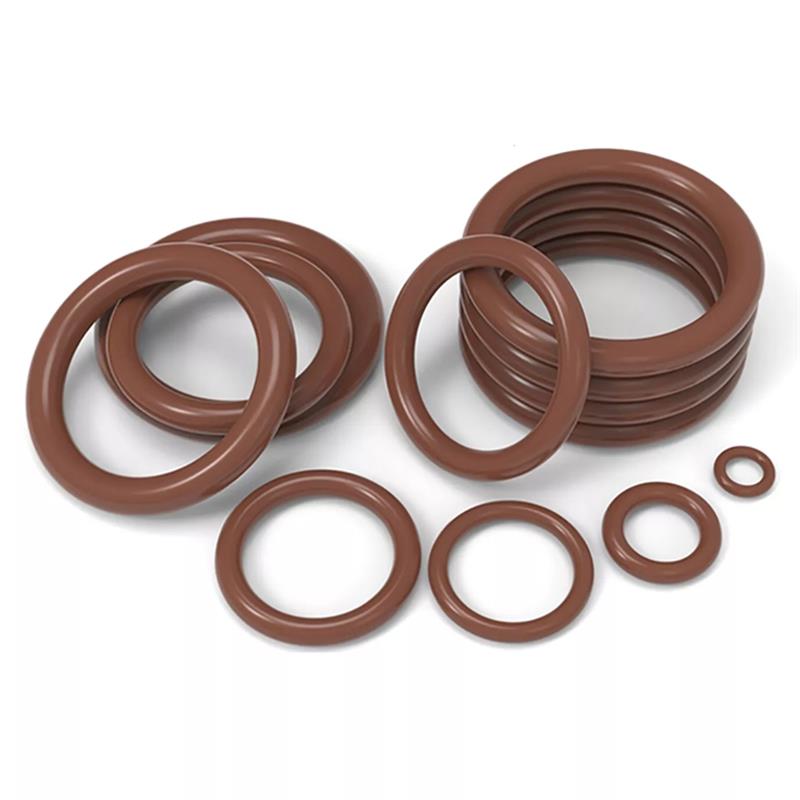

Replacement O-Ring (match material/size to OEM specs, e.g., Viton® FKM for high-temp apps)
Plastic Pry Tools (to avoid scratching distributor housing)
Isopropyl Alcohol & Lint-Free Cloth
Dielectric Grease (e.g., 3M™ 08946)
Torque Wrench (range: 5–15 Nm)
Safety Precautions
⚠️ Disconnect the Battery (negative terminal first) to prevent electrical shock.
⚠️ Work in a clean, dry area to avoid contaminating the distributor.
Replacement Procedure
1. Access the Distributor
Step 1: Locate the distributor (typically mounted on the engine block near spark plugs).
Step 2: Remove the distributor cap:
– Unclip latches or unscrew bolts (4–6 mm socket).
– Lift the cap vertically to avoid damaging the rotor.
2. Remove the Old O-Ring

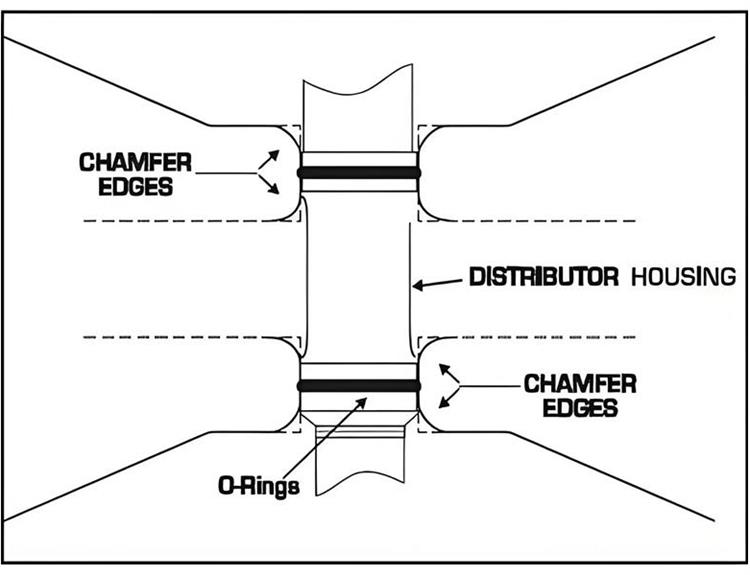

Step 3: Inspect the O-ring groove (between distributor housing and shaft).
Step 4: Use a plastic pick to gently pry out the old O-ring.
→ Pro Tip: If stuck, apply a drop of silicone spray to loosen.
3. Clean & Prepare Surfaces
Step 5: Wipe the groove with isopropyl alcohol to remove debris.
Step 6: Check for nicks or corrosion (sand lightly with 600-grit sandpaper if needed).
4. Install the New O-Ring
Step 7: Lubricate the O-ring with dielectric grease (cover 100% of the surface).
Step 8: Stretch the O-ring evenly over the distributor shaft.
→ Critical: Avoid twisting – ensure it sits flat in the groove.
5. Reassemble the Distributor
Step 9: Reinstall the distributor cap and align housing marks.
Step 10: Tighten bolts to 8–12 Nm (use a torque wrench for precision).
6. Post-Installation Check
Step 11: Reconnect the battery and start the engine.
Step 12: Verify:
✅ No oil/moisture leakage around the distributor.
✅ Smooth engine operation (no misfires).
Applications of Distributor O-Rings
In electrical systems, distributor o-rings — commonly integrated into ignition distributors (in combustion engines) or power distribution panels (in industrial settings)—serve critical sealing and insulation roles. They prevent moisture, dust, and contaminants from entering sensitive electrical components, ensuring reliable performance in automotive ignition systems (e.g., sealing rotor shafts and caps), industrial power distribution units (protecting terminals and connectors), and renewable energy setups (e.g., solar inverters). Advanced materials like high-temperature silicone or fluorocarbon enhance resistance to heat, voltage stress, and chemical exposure, while compact designs maintain electrical safety, operational longevity and high-efficiency applications.
Select Correct Distributor O-Rings

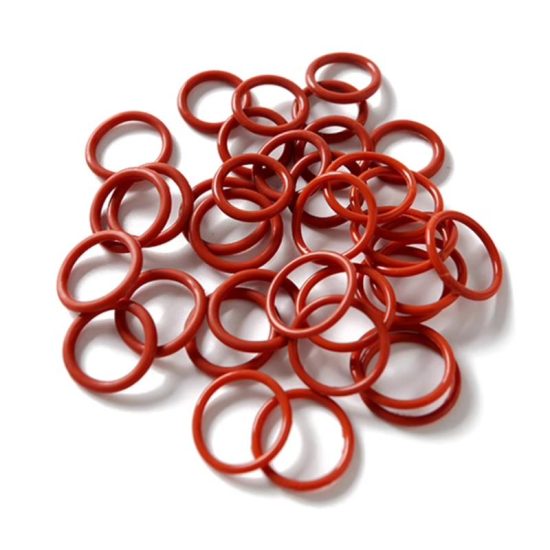

To select the correct distributor o-ring, start by measuring the groove’s inner diameter (ID) and cross-section (CS), referencing manufacturer specs for common sizes (e.g., 10mm ID × 2mm CS). Choose a material compatible with your application: Nitrile (NBR) for oil and fuel resistance in gasoline engines, Viton® (FKM) for high-temperature environments (up to 250°C/480°F) like turbocharged systems, or Silicone (VMQ) for flexibility in low temperatures (-60°C/-76°F), avoiding high-pressure fuel exposure. Cross-check your vehicle’s manual or VIN-based tools for OEM specifications, ensuring compatibility with the distributor model (e.g., Bosch or Delphi). Prioritize certified o-rings (SAE J200/ISO 3601) and lubricate with silicone grease during installation to prevent damage. Test for leaks post-installation and replace every 60,000–100,000 miles or if wear (cracking, flattening) is visible.
Please refer to our material page: https://savvyrubber.com/materials/.
Lastly, order them from us directly or purchase from our resellers.
