VA Ring Seal & VA Ring Size Chart

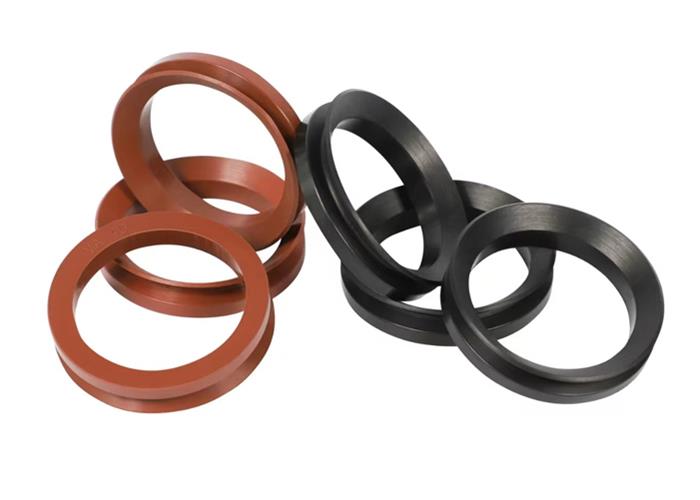

As the most widely used standardized product, the VA ring seal features a straight-back design that achieves a compact profile, requiring approximately 30% less axial installation space compared to the VS ring. With an ultra-wide inner diameter range of 2.5–1,810 mm and compatibility with shaft diameters ranging from 3 to 1,000 mm, its exceptional sealing performance and short axial installation length make it ideal for gearboxes, drive motors, and industrial transmission systems in small-to-medium equipment. VA ring seal holds over 60% market share in its category.
Savvy is a China manufacturer and supplier specializing in precision-molded NBR/FKM V-Ring seals with standardized profiles (VA/VAX/VS/VE/VL/VLX/RM/RME), manufactured to ISO 3601-3 tolerances. Our rigorous quality control and space-optimized designs ensure a service life of over 12,000 hours in demanding conditions ranging from -40°C to 200°C.
VA Ring (V-Ring Type A) Size Chart

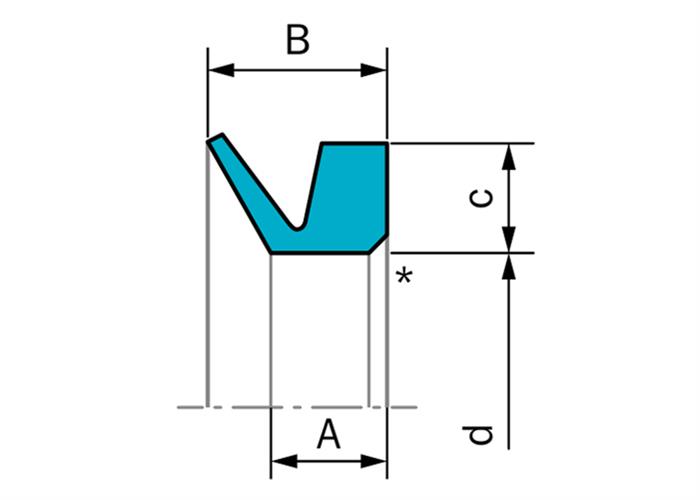

Dimensions are in millimeters (mm) ID = Inside Diameter OD = Outside Diameter H = Height
| VA Type | ID | OD | Height | Shaft Diameter | Size | Wall | Maximum | Minimum | Fitted Width |
|---|---|---|---|---|---|---|---|---|---|

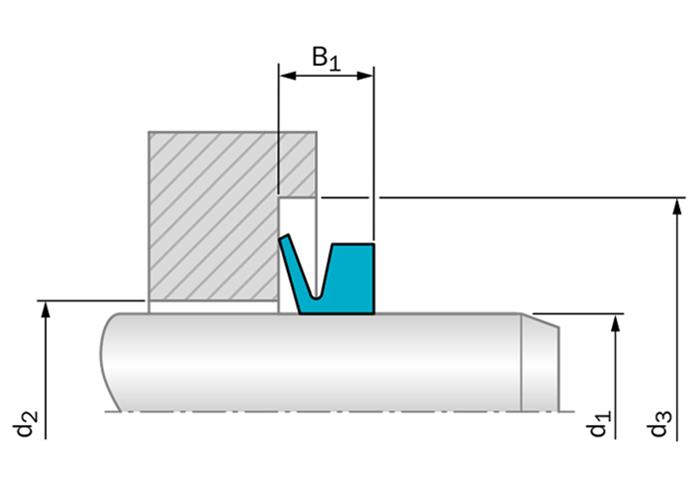

| Ref. | d | d + 2c | H (B) | d1 | A | W (c) | d2 | d3 | B1 |
| VA-3 | 2.5 | 5.5 | 3 | 2.7-3.5 | 2.1 | 1.5 | d1+1 | d1+4 | 2.5±0.3 |
| VA-4 | 3.2 | 7.2 | 3.7 | 3.5-4.5 | 2.4 | 2 | d1+1 | d1+6 | 3.0±0.4 |
| VA-5 | 4 | 8 | 3.7 | 4.5-5.5 | 2.4 | 2 | d1+1 | d1+6 | 3.0±0.4 |
| VA-6 | 5 | 9 | 3.7 | 5.5-6.5 | 2.4 | 2 | d1+1 | d1+6 | 3.0±0.4 |
| VA-7 | 6 | 10 | 3.7 | 6.5-8.0 | 2.4 | 2 | d1+1 | d1+6 | 3.0±0.4 |
| VA-8 | 7 | 11 | 3.7 | 8.0-9.5 | 2.4 | 2 | d1+1 | d1+6 | 3.0±0.4 |
| VA-10 | 9 | 15 | 5.5 | 9.5-11.5 | 3.4 | 3 | d1+2 | d1+9 | 4.5±0.6 |
| VA-12 | 10.5 | 16.5 | 5.5 | 11.5-12.5 | 3.4 | 3 | d1+2 | d1+9 | 4.5±0.6 |
| VA-13 | 11.7 | 17.7 | 5.5 | 12.5-13.5 | 3.4 | 3 | d1+2 | d1+9 | 4.5±0.6 |
| VA-14 | 12.5 | 18.5 | 5.5 | 13.5-15.5 | 3.4 | 3 | d1+2 | d1+9 | 4.5±0.6 |
| VA-16 | 14 | 20 | 5.5 | 15.5-17.5 | 3.4 | 3 | d1+2 | d1+9 | 4.5±0.6 |
| VA-18 | 16 | 22 | 5.5 | 17.5-19.0 | 3.4 | 3 | d1+2 | d1+9 | 4.5±0.6 |
| VA-20 | 18 | 26 | 7.5 | 19-21 | 4.7 | 4 | d1+2 | d1+12 | 6.0±0.8 |
| VA-22 | 20 | 28 | 7.5 | 21-24 | 4.7 | 4 | d1+2 | d1+12 | 6.0±0.8 |
| VA-25 | 22 | 30 | 7.5 | 24-27 | 4.7 | 4 | d1+2 | d1+12 | 6.0±0.8 |
| VA-28 | 25 | 33 | 7.5 | 27-29 | 4.7 | 4 | d1+3 | d1+12 | 6.0±0.8 |
| VA-30 | 27 | 35 | 7.5 | 29-31 | 4.7 | 4 | d1+3 | d1+12 | 6.0±0.8 |
| VA-32 | 29 | 37 | 7.5 | 31-33 | 4.7 | 4 | d1+3 | d1+12 | 6.0±0.8 |
| VA-35 | 31 | 39 | 7.5 | 33-36 | 4.7 | 4 | d1+3 | d1+12 | 6.0±0.8 |
| VA-38 | 34 | 42 | 7.5 | 36-38 | 4.7 | 4 | d1+3 | d1+12 | 6.0±0.8 |
| VA-40 | 36 | 46 | 9 | 38-43 | 5.5 | 5 | d1+3 | d1+15 | 7.0±1.0 |
| VA-45 | 40 | 50 | 9 | 43-48 | 5.5 | 5 | d1+3 | d1+15 | 7.0±1.0 |
| VA-50 | 45 | 55 | 9 | 48-53 | 5.5 | 5 | d1+3 | d1+15 | 7.0±1.0 |
| VA-55 | 49 | 59 | 9 | 53-58 | 5.5 | 5 | d1+3 | d1+15 | 7.0±1.0 |
| VA-60 | 54 | 64 | 9 | 58-63 | 5.5 | 5 | d1+3 | d1+15 | 7.0±1.0 |
| VA-65 | 58 | 68 | 9 | 63-68 | 5.5 | 5 | d1+3 | d1+15 | 7.0±1.0 |
| VA-70 | 63 | 75 | 11 | 86-73 | 6.8 | 6 | d1+4 | d1+18 | 9.0±1.2 |
| VA-75 | 67 | 79 | 11 | 73-78 | 6.8 | 6 | d1+4 | d1+18 | 9.0±1.2 |
| VA-80 | 72 | 84 | 11 | 78-83 | 6.8 | 6 | d1+4 | d1+18 | 9.0±1.2 |
| VA-85 | 76 | 88 | 11 | 83-88 | 6.8 | 6 | d1+4 | d1+18 | 9.0±1.2 |
| VA-90 | 81 | 93 | 11 | 88-93 | 6.8 | 6 | d1+4 | d1+18 | 9.0±1.2 |
| VA-95 | 85 | 97 | 11 | 93-98 | 6.8 | 6 | d1+4 | d1+18 | 9.0±1.2 |
| VA-100 | 90 | 102 | 11 | 98-105 | 6.8 | 6 | d1+4 | d1+18 | 9.0±1.2 |
| VA-110 | 99 | 113 | 12.8 | 105-115 | 7.9 | 7 | d1+4 | d1+21 | 10.5±1.5 |
| VA-120 | 108 | 122 | 12.8 | 115-125 | 7.9 | 7 | d1+4 | d1+21 | 10.5±1.5 |
| VA-130 | 117 | 131 | 12.8 | 125-135 | 7.9 | 7 | d1+4 | d1+21 | 10.5±1.5 |
| VA-140 | 126 | 140 | 12.8 | 135-145 | 7.9 | 7 | d1+4 | d1+21 | 10.5±1.5 |
| VA-150 | 135 | 149 | 12.8 | 145-155 | 7.9 | 7 | d1+4 | d1+21 | 10.5±1.5 |
| VA-160 | 144 | 160 | 14.5 | 155-165 | 9 | 8 | d1+5 | d1+24 | 12.0±1.8 |
| VA-170 | 153 | 169 | 14.5 | 165-175 | 9 | 8 | d1+5 | d1+24 | 12.0±1.8 |
| VA-180 | 162 | 178 | 14.5 | 175-185 | 9 | 8 | d1+5 | d1+24 | 12.0±1.8 |
| VA-190 | 171 | 187 | 14.5 | 185-195 | 9 | 8 | d1+5 | d1+24 | 12.0±1.8 |
| VA-199 | 180 | 196 | 14.5 | 195-210 | 9 | 8 | d1+5 | d1+24 | 12.0±1.8 |
| VA-200 | 180 | 210 | 25 | 190-210 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-220 | 198 | 228 | 25 | 210-235 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-250 | 225 | 255 | 25 | 235-265 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-275 | 247 | 277 | 25 | 265-290 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-300 | 270 | 300 | 25 | 290-310 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-325 | 292 | 322 | 25 | 310-335 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-350 | 315 | 345 | 25 | 335-365 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-375 | 337 | 367 | 25 | 365-390 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-400 | 360 | 390 | 25 | 390-430 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-450 | 405 | 435 | 25 | 430-480 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-500 | 450 | 480 | 25 | 480-530 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-550 | 495 | 525 | 25 | 530-580 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-600 | 540 | 570 | 25 | 580-630 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-650 | 600 | 630 | 25 | 630-665 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-700 | 630 | 660 | 25 | 665-705 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-725 | 670 | 700 | 25 | 705-745 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-750 | 705 | 735 | 25 | 745-785 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-800 | 745 | 775 | 25 | 785-830 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-850 | 785 | 815 | 25 | 830-875 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-900 | 825 | 855 | 25 | 875-920 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-950 | 865 | 895 | 25 | 920-965 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1000 | 910 | 940 | 25 | 965-1015 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1100 | 1000 | 1030 | 25 | 1065-1115 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1150 | 1045 | 1075 | 25 | 1115-1165 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1200 | 1090 | 1120 | 25 | 1165-1215 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1250 | 1135 | 1165 | 25 | 1215-1270 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1300 | 1180 | 1210 | 25 | 1270-1320 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1350 | 1225 | 1255 | 25 | 1320-1370 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1400 | 1270 | 1300 | 25 | 1370-1420 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1450 | 1315 | 1345 | 25 | 1420-1470 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1500 | 1360 | 1390 | 25 | 1470-1520 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1550 | 1405 | 1435 | 25 | 1520-1570 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1600 | 1450 | 1480 | 25 | 1570-1620 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1650 | 1495 | 1525 | 25 | 1620-1670 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1700 | 1540 | 1570 | 25 | 1670-1720 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1750 | 1585 | 1615 | 25 | 1720-1770 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1800 | 1630 | 1660 | 25 | 1770-1820 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1850 | 1675 | 1705 | 25 | 1820-1870 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1900 | 1720 | 1750 | 25 | 1870-1920 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-1950 | 1765 | 1795 | 25 | 1920-1970 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
| VA-2000 | 1810 | 1840 | 25 | 1970-2020 | 14.3 | 15 | d1+10 | d1+45 | 20.0±4.0 |
Download the Printable PDF VA Ring Size Chart by clicking the above button, and if you need our Excel version, please send an email to: [email protected].
VA Ring Materials
The most commonly used materials for VA Rings are nitrile NBR and FKM/Viton. And the hardness (durometer) of NBR and FKM rubber is generally 60 Shore A. HNBR, EPDM, and PTFE are rarely used in some special scenarios.
1. NBR – Excellent oil resistance, good elasticity, suitable for mineral oil, grease and other media, the working temperature is generally -40℃～100℃. Widely used in the seals of automobiles, bearings, pumps and other equipment, and is a common material for V-type water seals (such as VA type, VL type).
2. FKM/Viton – High temperature resistance (up to 200℃), strong chemical corrosion resistance, suitable for harsh media such as synthetic oil, acid, alkali, etc. Used for water seals in high temperature or chemical corrosion environments (such as VA type, VL type).
3. HNBR – Hydrogenated and modified based on NBR, the temperature resistance is significantly improved (-40℃～150℃), while retaining excellent oil resistance, and stronger oxidation resistance and chemical corrosion resistance. Suitable for sealing scenarios with higher temperatures or chemical environments, such as high-temperature oil pressure equipment, chemical pumps, etc.
4. EPDM – Outstanding water and steam resistance, temperature resistance range -40℃～150℃, suitable for non-oily media such as water and air. Used for sealing in water treatment equipment or humid environments.
Depending on the different material, VA ring can be used in the following working conditions:
Speed: ≤19m/s; Pressure: ≤40MPa; Temperature: -40℃～+200℃; Medium: mineral oil, air, water, emulsion, grease, etc.
